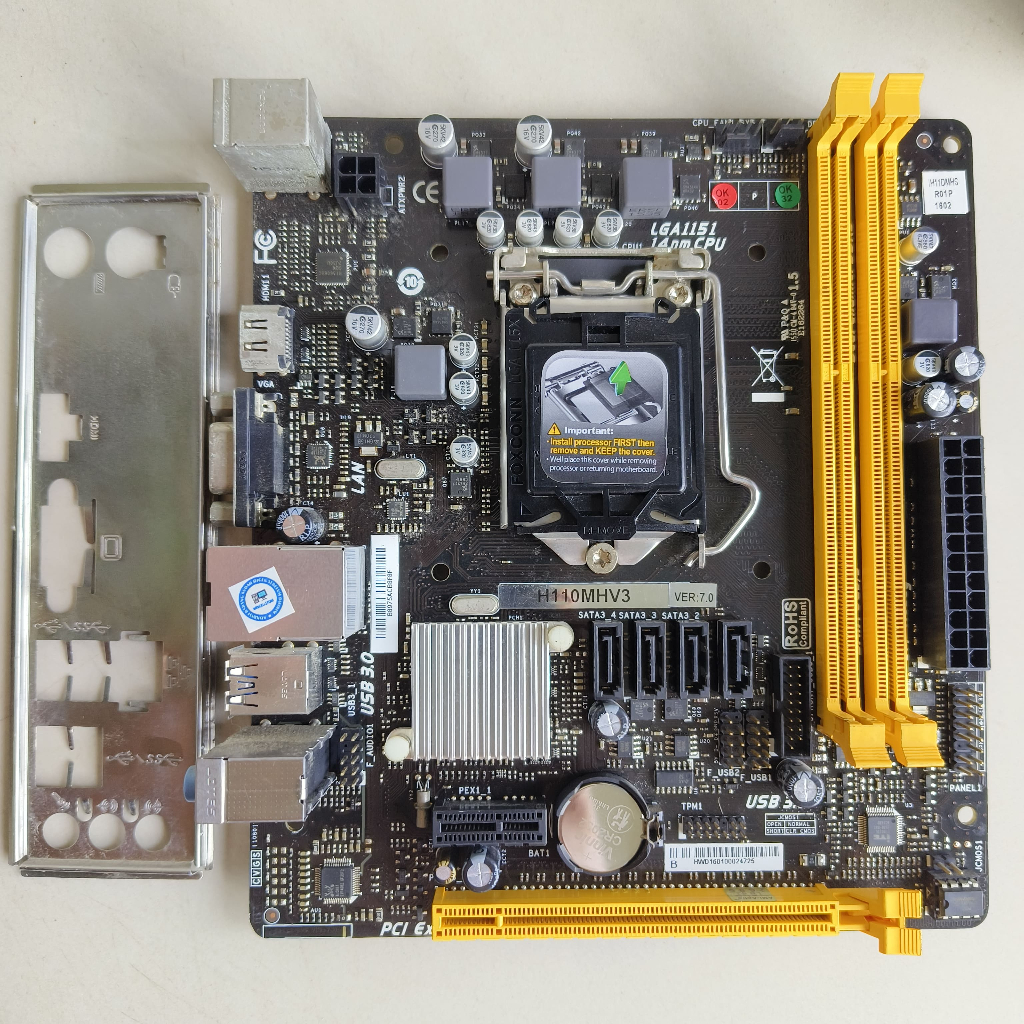

The Biostar H110MHV3 is a Micro ATX motherboard featuring Intel's H110 chipset and LGA 1151 socket, supporting 6th/7th Gen Intel processors. It offers dual-channel DDR4 memory up to 32GB at 2133MHz across 2 slots. The board includes PCIe 3.0 x16 and two PCIe 2.0 x1 slots, plus an M.2 slot for storage expansion. Connectivity includes 4 SATA 6Gb/s ports, HDMI/D-Sub outputs, Gigabit LAN, and multiple USB ports (2x USB 3.0, 6x USB 2.0). Audio is handled by Realtek ALC887 with 7.1 channels.
Specifications
Price
RM153.89
2 products(1 item sold out)
Specifications
Basic information
Brand
Biostar
Model
H110MHV3
Release date
2016-01-01
Socket type
LGA 1151
Supported processors
Intel 6th/7th Gen Core i7/i5/i3/Pentium/Celeron
Chipset
Intel H110
Form factor
Micro ATX
Memory
Max memory capacity
32
Max memory capacity unit
GB
Memory channels
Dual
Memory slots
2
Memory speed
2133
Memory speed unit
MHz
Memory type
DDR4
Xmp support
No
Environmental
Operating humidity
Unit
%
Min
20
Max
90
Operating temperature
Unit
°C
Max
60
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 2.0 x4', 'max_speed': '20 Gb/s'}]
Pcie slots
[{'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': '8 GT/s'}, {'type': 'PCIe 2.0 x1', 'quantity': 2, 'speed': '5 GT/s'}]
Warranty support
Warranty period
3
Warranty period unit
years
Warranty type
Limited
Storage
Sata ports
4
Sata speed
6 Gb/s
Features
Bios features
UEFI BIOS, Multi-language
Debug features
POST State LED
Connectivity
Networking
Ethernet
Realtek RTL8111H Gigabit LAN
Wifi
No
Bluetooth
No
Usb ports
[{'type': 'USB 3.0', 'quantity': 2, 'speed': '5 Gb/s'}, {'type': 'USB 2.0', 'quantity': 6, 'speed': '480 Mb/s'}]
Video outputs
Hdmi
1
D sub
1
Physical specs
Length
22.6
Length unit
cm
Weight
0.5
Weight unit
kg
Width
17.4
Width unit
cm
Cooling
Fan headers
1
Heatsinks
Chipset heatsink
Thermal sensors
1
Audio
Channels
7.1
Codec
Realtek ALC887
Features
High Definition Audio, Audio Noise Guard
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '4-pin ATX', 'quantity': 1}]
Power phases
4+2
Vrm solution
Standard
