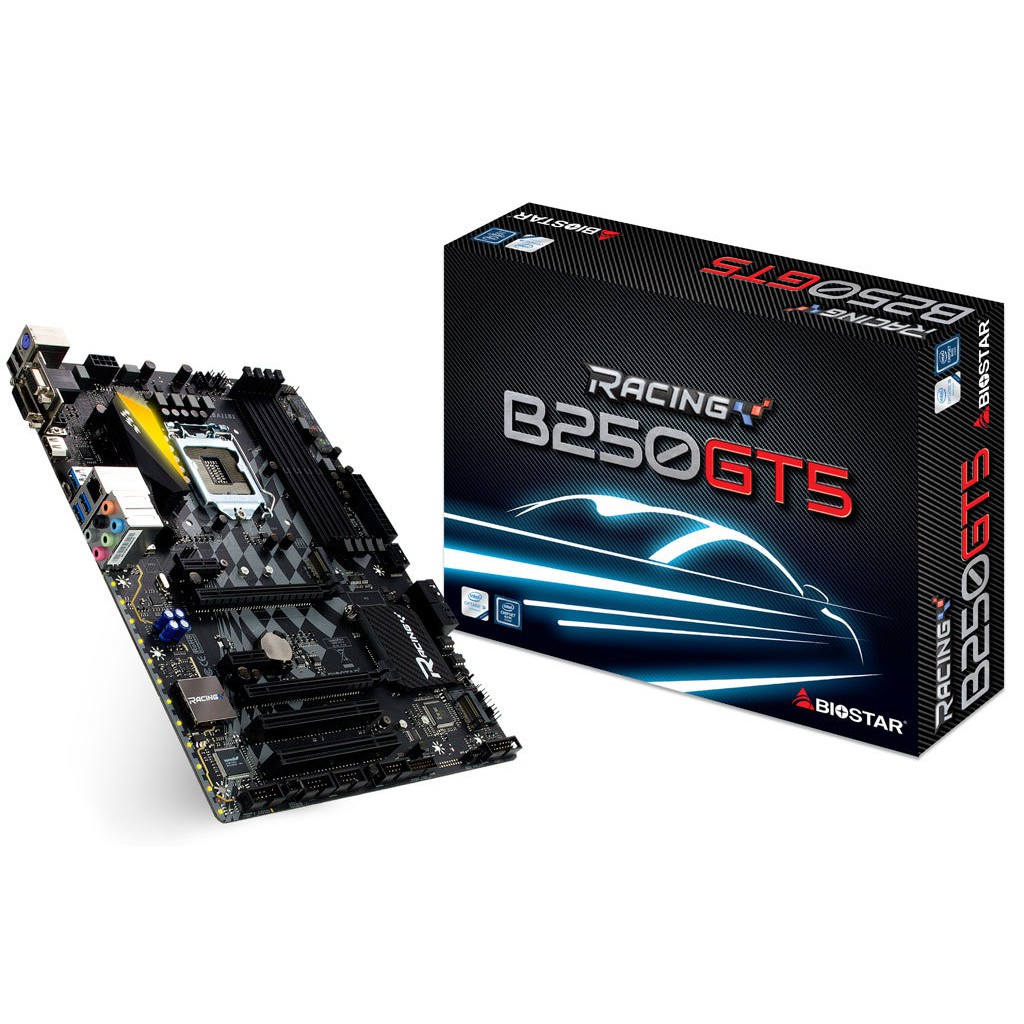

The Biostar B250 is a 2017 ATX motherboard featuring LGA 1151 socket support for Intel Core, Pentium, and Celeron processors. It offers 64GB max DDR4-2400MHz memory across 4 slots, 6 SATA ports, and diverse expansion options including 1 PCIe 3.0 x16 slot and 1 M.2 slot. Connectivity includes HDMI, DisplayPort, D-Sub, Gigabit Ethernet, and multiple USB ports. Features 7.1 HD audio, digital PWM power delivery, and comprehensive cooling with 3 fan headers.
Specifications
Price
Shopee
6.6 SALE: FREE SHIPPING!
RM347.49
7 products(5 items sold out)
Specifications
Basic information
Brand
Biostar
Model
B250
Release date
2017-01-01
Socket type
LGA 1151
Supported processors
Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium, Intel Celeron
Chipset
Intel B250
Form factor
ATX
Memory
Max memory capacity
64
Max memory capacity unit
GB
Memory channels
Dual
Memory slots
4
Memory speed
2400
Memory speed unit
MHz
Memory type
DDR4
Xmp support
No
Environmental
Operating humidity
Unit
%
Min
20
Max
90
Operating temperature
Unit
°C
Max
60
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 3.0 x4', 'max_speed': '32 Gb/s'}]
Pcie slots
[{'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': '16 GT/s'}, {'type': 'PCIe 3.0 x1', 'quantity': 6, 'speed': '8 GT/s'}]
Warranty support
Warranty period
3
Warranty period unit
years
Warranty type
Limited
Storage
Sata ports
6
Sata speed
6 Gb/s
Features
Bios features
UEFI BIOS, Multi-language
Debug features
POST State LED
Connectivity
Networking
Ethernet
Gigabit Ethernet
Wifi
No
Bluetooth
No
Usb ports
[{'type': 'USB 3.1 Gen1', 'quantity': 4, 'speed': '5 Gb/s'}, {'type': 'USB 2.0', 'quantity': 6, 'speed': '480 Mb/s'}]
Video outputs
Hdmi
1
Displayport
1
D sub
1
Physical specs
Length
30.5
Length unit
cm
Weight
1.2
Weight unit
kg
Width
24.4
Width unit
cm
Cooling
Fan headers
3
Heatsinks
VRM Heatsink, Chipset Heatsink
Pump headers
1
Thermal sensors
3
Audio
Channels
7.1
Codec
Realtek ALC892
Features
High Definition Audio, Audio Noise Guard
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin EPS', 'quantity': 1}]
Power phases
4+3
Vrm solution
Digital PWM
