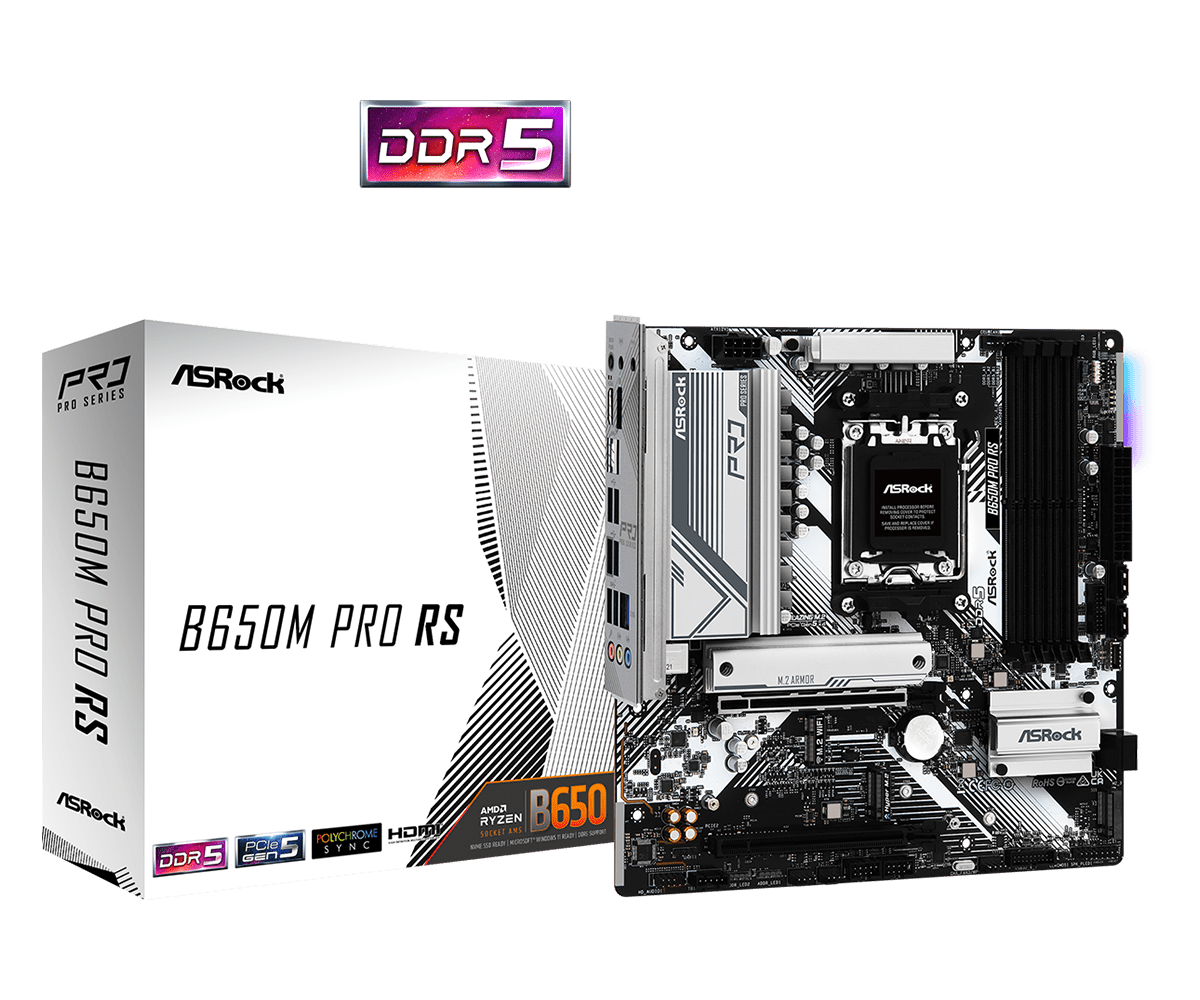

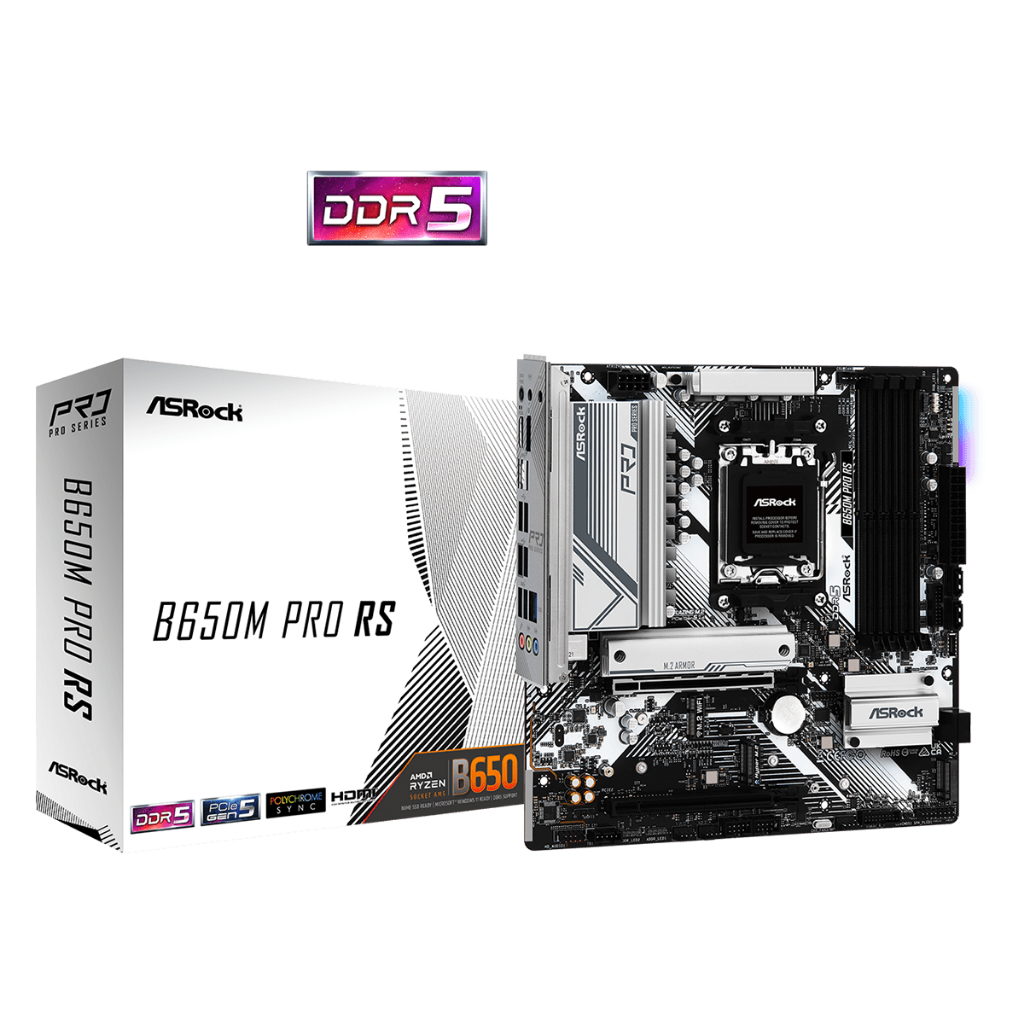

Temui kuasa dan prestasi terbaharu dengan motherboard ASRock B650M Pro RS WiFi. Direka untuk pemproses AMD Ryzen 7000 & 8000 siri, ia menyokong memori DDR5 berkelajuan tinggi dan antara muka PCIe 5.0 untuk grafik dan storan yang pantas. Nikmati sambungan tanpa wayar yang pantas dengan WiFi 6E dan pengalaman audio yang mendalam dengan Realtek ALC897. Sempurna untuk pembangun PC dan pemain yang mencari prestasi dan kebolehpercayaan yang optimum. Heatsink aluminium M.2 memastikan penyejukan yang cekap, manakala sokongan BIOS Flashback memudahkan kemas kini BIOS.
Spesifikasi
Harga
PG Mall
RM849.00
1 produk
Lazada
RM929.00
3 produk(2 produk terjual)
RM1,199.00
10 produk(9 produk terjual)
Spesifikasi
Basic information
Brand
ASRock
Model
B650M Pro RS WiFi
Socket type
Socket AM5
Supported processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Chipset
AMD B650
Form factor
Micro-ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
4
Memory speed
7200
Memory speed unit
MHz
Memory type
DDR5 SDRAM
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 5.0', 'max_speed': '128GB/s'}, {'quantity': 2, 'interface': 'PCIe 4.0', 'max_speed': None}]
Pcie slots
[{'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': None}, {'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': None}]
Warranty support
Warranty period
24
Warranty period unit
months
Storage
Sata ports
4
Sata speed
6Gb/s
Features
Bios features
BIOS Flashback
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5Gbps
Wifi
WiFi 6E
Usb ports
[{'type': 'USB 3.2 Gen2 Type-A', 'quantity': 1, 'speed': '10 Gb/s'}, {'type': 'USB 3.2 Gen2 Type-C', 'quantity': 1, 'speed': '10 Gb/s'}, {'type': 'USB 3.2 Gen1 Type-A', 'quantity': 6, 'speed': '5 Gb/s'}, {'type': 'USB 2.0 Type-A', 'quantity': 8, 'speed': None}]
Video outputs
Hdmi
1
Displayport
1
Cooling
Heatsinks
Aluminum M.2 heatsink
Audio
Channels
7.1
Codec
Realtek ALC897
Features
Nahimic Audio
Power system
Power connectors
[{'type': None, 'quantity': None}]
Power phases
12+2+1
Vrm solution
Dr.MOS
