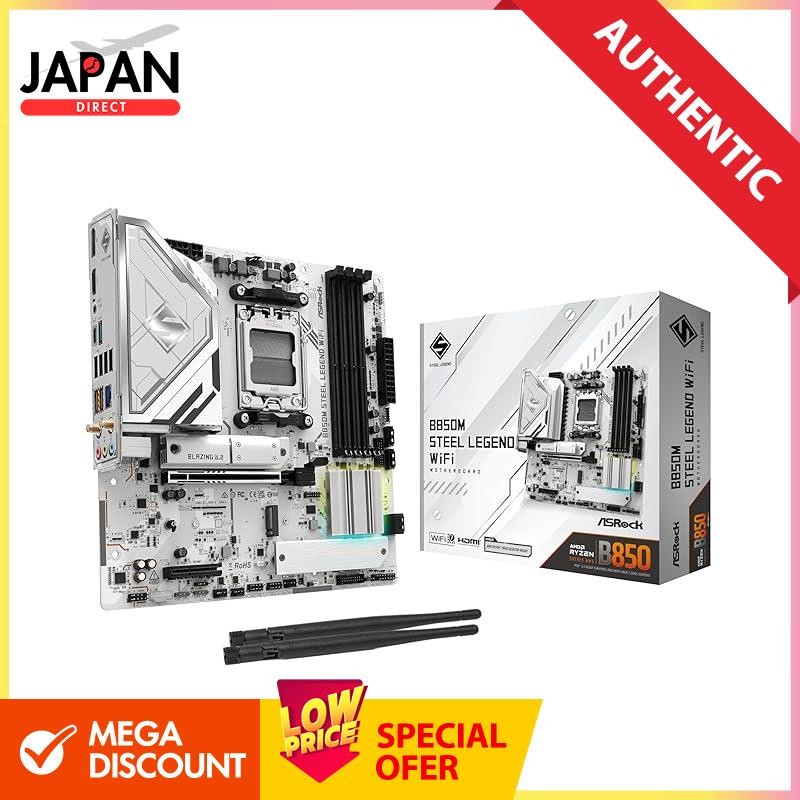

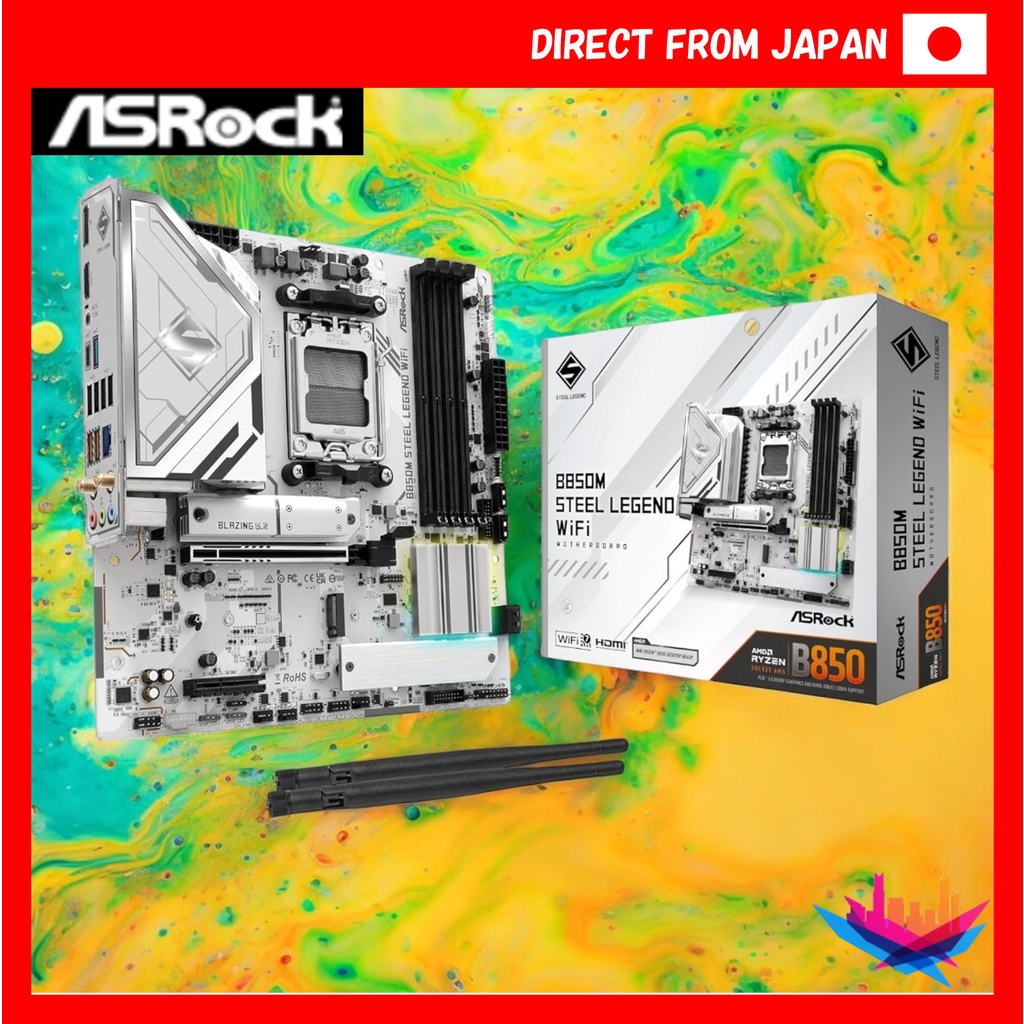

Temui kuasa dan prestasi yang tiada tandingannya dengan motherboard ASRock B850M Steel Legend WiFi. Direka untuk peminat dan pemain tegar, ia menyokong pemproses AMD Ryzen 7000, 8000 dan 9000 siri dengan soket AM5. Nikmati kelajuan pantas dengan sokongan memori DDR5 sehingga 8000MT/s dan slot PCIe 5.0 x16 untuk grafik generasi baharu. Dengan reka bentuk yang mantap, penyelesaian VRM 14+2+1 fasa dan sokongan WiFi 7, ia memastikan prestasi yang stabil dan sambungan yang pantas. Sempurna untuk membina sistem permainan yang berkuasa dan berprestasi tinggi. Tingkatkan pengalaman komputer anda dengan ASRock B850M Steel Legend WiFi.
Spesifikasi
Harga
RM1,303.67
3 produk
Spesifikasi
Basic information
Brand
ASRock
Model
B850M Steel Legend WiFi
Socket type
AM5
Supported processors
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Chipset
AMD B850
Form factor
Micro ATX
Memory
Max memory capacity
256
Max memory capacity unit
GB
Memory channels
Dual Channel
Memory slots
4
Memory speed
8000
Memory speed unit
MT/s
Memory type
DDR5
Xmp support
Supported
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe Gen5x4', 'max_speed': '128 Gb/s'}, {'quantity': 3, 'interface': 'PCIe Gen4x4', 'max_speed': '64 Gb/s'}]
Pcie slots
[{'type': 'PCIe 5.0 x16', 'quantity': 1, 'speed': '5.0'}, {'type': 'PCIe 4.0 x4', 'quantity': 1, 'speed': '4.0'}]
Storage
Sata ports
4
Sata speed
6Gb/s
Features
Bios features
BIOS Flashback, Auto Driver Installer
Debug features
EZ Debug LEDs
Rgb headers
4
Rgb support
Yes
Connectivity
Networking
Ethernet
2.5G LAN (Realtek RTL8125BG)
Wifi
Wi-Fi 7 (802.11be)
Bluetooth
5.4
Usb ports
[{'type': 'USB 3.2 Gen2 Type-C', 'quantity': 2, 'speed': '10 Gb/s'}, {'type': 'USB 3.2 Gen2 Type-A', 'quantity': 2, 'speed': '10 Gb/s'}, {'type': 'USB 3.2 Gen1 Type-A', 'quantity': 7, 'speed': '5 Gb/s'}, {'type': 'USB 2.0', 'quantity': 8, 'speed': '480 Mb/s'}]
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
24.4
Length unit
cm
Width
24.4
Width unit
cm
Cooling
Fan headers
5
Heatsinks
VRM, M.2
Pump headers
1
Thermal sensors
1
Audio
Channels
7.1
Codec
Realtek ALC4082
Features
Nahimic Audio
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 2}]
Power phases
14+2+1
Vrm solution
80A Dr.MOS
