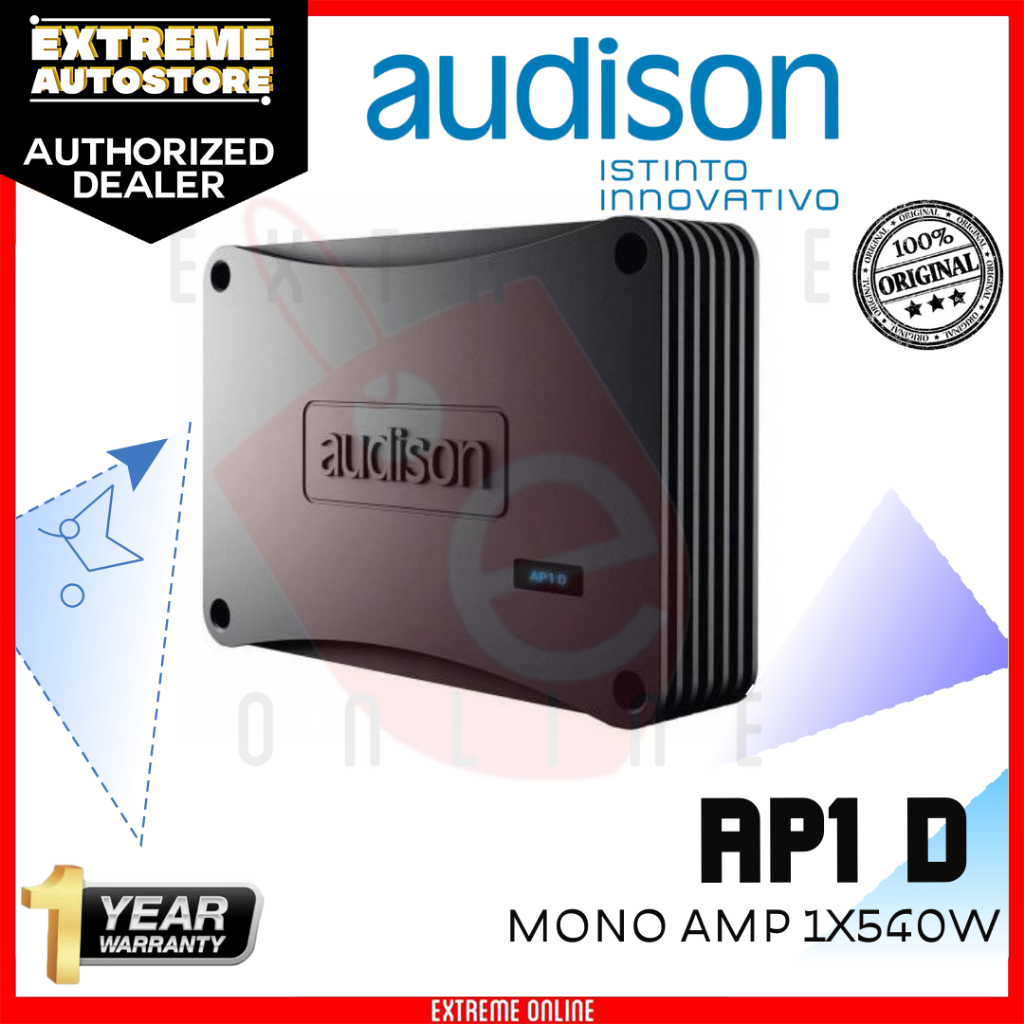

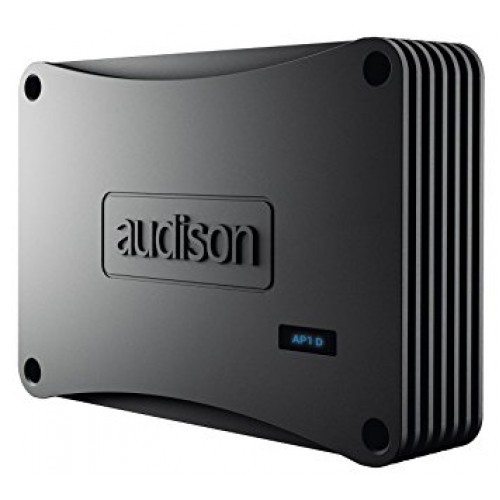

The Audison AP1 D is a powerful mono amplifier delivering 540W at 2 ohms with just 0.2% THD. This compact unit (198x45.5x134mm) features a wide frequency response of 16Hz-40kHz and impressive 100dBA signal-to-noise ratio. With adjustable input sensitivity (1.5/3.0/4.5V RMS) and APTK 3 stacking system, it offers versatile installation options. Operating at 7.5-15 VDC with low power consumption, it's an efficient choice for high-quality bass amplification.
Spesifikasi
Harga
RM1,951.00
2 produk
Spesifikasi
Basic info
Brand
Audison
Model
AP1 D
Type
Mono Amplifier
Power specifications
Power output
Watts per channel
540
Impedance
2
Channels
1
THD
0.2
Power supply
Voltage
7.5 – 15 VDC
Power consumption
Operating
30
Standby
0.05
Audio performance
Damping factor
150
Frequency response
16 Hz – 40 kHz
Input sensitivity
Line
1.5 / 3.0 / 4.5 V RMS
Signal to noise ratio
Line
100 dBA
Total harmonic distortion
0.2%
Connectivity
Inputs
Analogue
RCA
1
Outputs
Analogue
Subwoofer
1
Physical specifications
Dimensions
Width
198
Height
45.5
Depth
134
Unit
mm
Weight
Value
1.32
Unit
kg
Additional features
Special features
APTK 3 stacking system
Included accessories
Multipolar cables, 30A replacement fuse, 2.5 mm hex key, 4.2 x 50 mm self-tapping screws, User’s Manual
