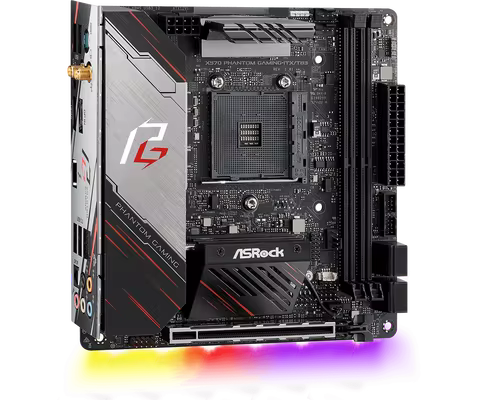

The ASRock X570 Phantom Gaming-ITX/TB3 is a feature-rich Mini-ITX motherboard supporting AMD Ryzen processors up to 5000 series. It offers PCIe 4.0 support, dual-channel DDR4 memory up to 4533MHz with 64GB capacity, and comprehensive connectivity including Wi-Fi 6, Thunderbolt 3, and multiple USB 3.1 ports. Features premium audio with Realtek ALC1220, robust 10-phase power delivery, and efficient cooling with chipset fan.
Spesifikasi
Harga
Lazada
RM561.98
1 produk
RM769.00
6 produk(Produk habis dijual)
Spesifikasi
Basic information
Brand
ASRock
Model
X570 Phantom Gaming-ITX/TB3
Socket type
AM4
Supported processors
AMD Ryzen 2000, AMD Ryzen 3000, AMD Ryzen 4000 G-Series, AMD Ryzen 5000, AMD Ryzen 5000 G-Series
Chipset
AMD X570
Form factor
Mini-ITX
Memory
Max memory capacity
64
Max memory capacity unit
GB
Memory channels
Dual
Memory slots
2
Memory speed
4533
Memory speed unit
MHz
Memory type
DDR4 SDRAM
Xmp support
Ya
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe 4.0 x4', 'max_speed': 'PCIe 4.0 x4'}]
Pcie slots
[{'type': 'PCIe 4.0 x16', 'quantity': 1, 'speed': 'PCIe 4.0'}]
Warranty support
Warranty period
3
Warranty period unit
tahun
Warranty type
standard
Storage
Sata ports
4
Sata speed
6 Gb/s
Features
Bios features
ASRock Full HD UEFI, ASRock Instant Flash
Debug features
Clear CMOS button
Rgb headers
1
Rgb support
Yes
Connectivity
Networking
Ethernet
Intel I211-AT Gigabit Ethernet
Wifi
Wi-Fi 6 (802.11ax)
Usb ports
[{'type': 'USB 3.1 Gen 2 Type-A', 'quantity': 2, 'speed': '10 Gbps'}, {'type': 'USB 3.1 Gen 2 Type-C', 'quantity': 1, 'speed': '10 Gbps'}, {'type': 'USB 3.1 Gen 1 Type-A', 'quantity': 2, 'speed': '5 Gbps'}]
Video outputs
Hdmi
1
Displayport
1
Physical specs
Length
17
Length unit
cm
Weight
0.95
Weight unit
kg
Width
17
Width unit
cm
Cooling
Fan headers
3
Heatsinks
Chipset heatsink with 40mm fan
Audio
Channels
7.1
Codec
Realtek ALC1220
Features
Sound Blaster Cinema 5, SPDIF
Power system
Power connectors
[{'type': '8-pin EPS', 'quantity': 1}]
Power phases
10
Vrm solution
Intersil ISL69147 controller + ISL6617A doublers
