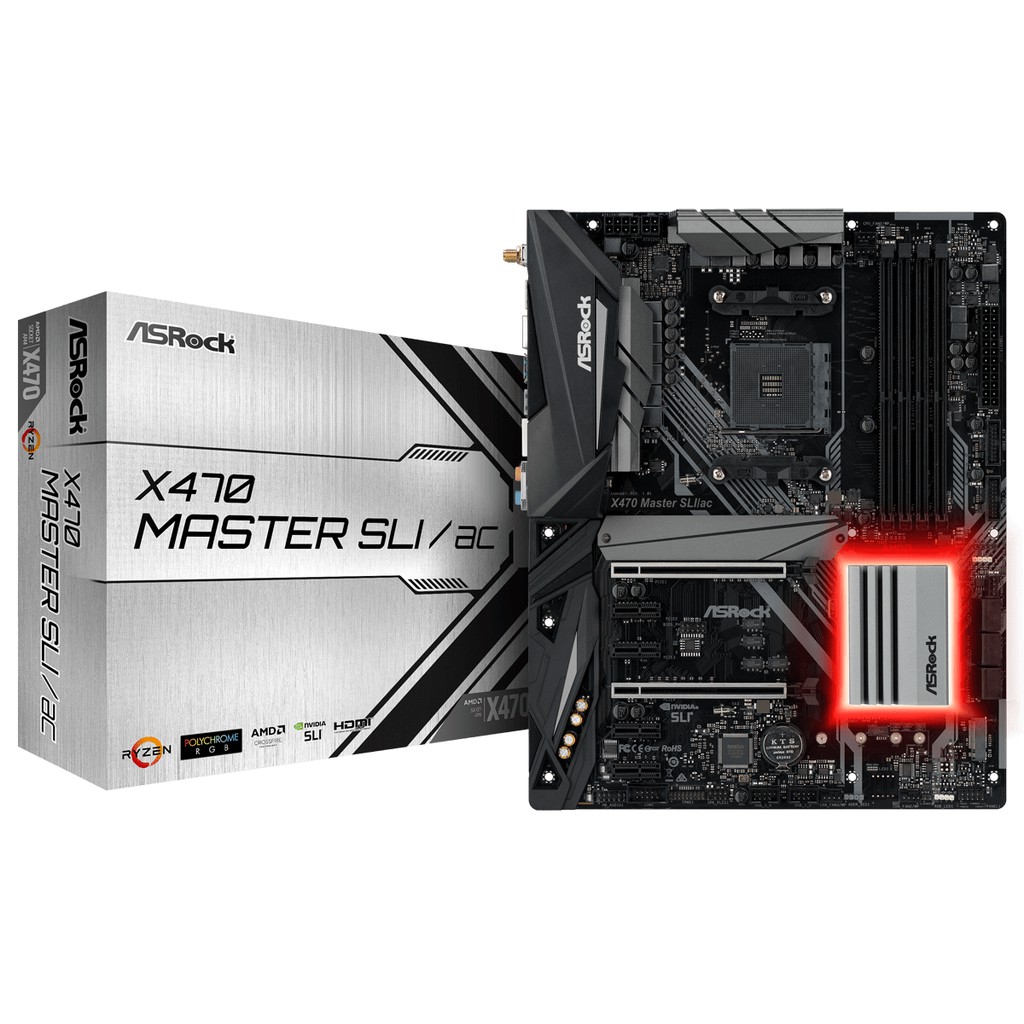

The ASRock X470 Master SLI/AC is a feature-rich ATX motherboard with AMD X470 chipset and AM4 socket, supporting various Ryzen processors up to 5000 series. It offers robust memory support with 4 DDR4 slots up to 3466MHz and 64GB capacity. The board features dual PCIe 3.0 x16 slots, dual M.2 slots, and comprehensive connectivity including WiFi 802.11ac, Bluetooth 4.2, and USB 3.1 Gen2 ports. Enhanced with 12-phase digital power delivery and XXL aluminum cooling.
Spesifikasi
Harga
RM649.00
1 produk(Produk habis dijual)
Spesifikasi
Basic information
Brand
ASRock
Model
X470 Master SLI/AC
Release date
2018-08-26
Socket type
AM4
Supported processors
AMD Ryzen 2000, AMD Ryzen 3000, AMD Ryzen 4000 G-Series, AMD Ryzen 5000, AMD Ryzen 5000 G-Series
Chipset
AMD X470
Form factor
ATX
Memory
Max memory capacity
64
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
4
Memory speed
3466
Memory speed unit
MHz
Memory type
DDR4-SDRAM
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe Gen3 x4 & SATA3', 'max_speed': '32 Gbps'}, {'quantity': 1, 'interface': 'PCIe Gen2 x2 & SATA3', 'max_speed': '16 Gbps'}]
Pcie slots
[{'type': 'PCIe 3.0 x16', 'quantity': 2, 'speed': 'Gen3'}, {'type': 'PCIe 2.0 x1', 'quantity': 4, 'speed': 'Gen2'}]
Storage
Sata ports
6
Sata speed
6 Gbps
Features
Bios features
UEFI AMI
Rgb headers
2
Rgb support
Yes
Connectivity
Networking
Ethernet
Gigabit (Intel I211AT)
Wifi
802.11a/b/g/n/ac
Bluetooth
4.2
Usb ports
[{'type': 'USB 3.1 Gen2 Type-A', 'quantity': 1, 'speed': '10 Gbps'}, {'type': 'USB 3.1 Gen2 Type-C', 'quantity': 1, 'speed': '10 Gbps'}, {'type': 'USB 3.1 Gen1', 'quantity': 6, 'speed': '5 Gbps'}]
Video outputs
Hdmi
1
Physical specs
Length
30.5
Length unit
cm
Width
24.4
Width unit
cm
Cooling
Fan headers
4
Heatsinks
XXL aluminum alloy, M.2 full-coverage
Pump headers
1
Thermal sensors
3
Audio
Channels
7.1
Codec
Realtek ALC892
Features
Nichicon Fine Gold Series capacitors
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '8-pin 12V', 'quantity': 1}, {'type': '4-pin 12V', 'quantity': 1}]
Power phases
12
Vrm solution
Digital PWM
