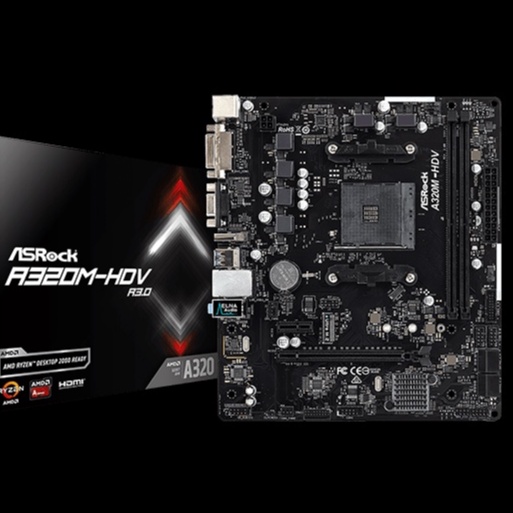

The ASRock A320M-HDV R3.0 is a Micro ATX motherboard featuring AMD's AM4 socket and A320 chipset. Supporting AMD Ryzen and A-Series processors, it offers dual-channel DDR4 memory up to 3200MHz with a 32GB capacity. The board includes PCIe 3.0 x16 slot, M.2 storage support, and 4 SATA ports. Connectivity features 7.1 CH HD audio, Gigabit LAN, HDMI/D-Sub outputs, and multiple USB ports including USB 3.1 Gen1.
Spesifikasi
Harga
RM125.00
1 produk(Produk habis dijual)
Spesifikasi
Basic information
Brand
ASRock
Model
A320M-HDV R3.0
Release date
2017-07-01
Socket type
AM4
Supported processors
AMD A-Series APUs (Bristol Ridge), AMD Ryzen Series CPUs (Summit Ridge, Raven Ridge, Pinnacle Ridge), AMD Athlon 200GE APU
Chipset
AMD A320
Form factor
Micro ATX
Memory
Max memory capacity
32
Max memory capacity unit
GB
Memory channels
Dual-channel
Memory slots
2
Memory speed
3200
Memory speed unit
MHz
Memory type
DDR4-SDRAM
Expansion slots
M2 slots
[{'quantity': 1, 'interface': 'PCIe Gen3x4 & SATA3', 'max_speed': '32 Gb/s'}]
Pcie slots
[{'type': 'PCIe 3.0 x16', 'quantity': 1, 'speed': 'x16/x8/x4 (varies by CPU)'}, {'type': 'PCIe 2.0 x1', 'quantity': 1, 'speed': 'null'}]
Storage
Sata ports
4
Sata speed
6 Gb/s
Features
Bios features
UEFI AMI, Secure Boot, Fast Boot
Connectivity
Networking
Ethernet
Gigabit LAN (Realtek RTL8111GR)
Usb ports
[{'type': 'USB 2.0', 'quantity': 2, 'speed': 'null'}, {'type': 'USB 3.1 Gen1', 'quantity': 4, 'speed': '5 Gb/s'}]
Video outputs
Hdmi
1
D sub
1
Physical specs
Length
230
Length unit
mm
Width
201
Width unit
mm
Cooling
Fan headers
3
Audio
Channels
7.1 CH HD Audio
Codec
Realtek ALC887
Features
ELNA Audio Caps
Power system
Power connectors
[{'type': '24-pin ATX', 'quantity': 1}, {'type': '4-pin 12V', 'quantity': 1}]
Power phases
6
